Huevat

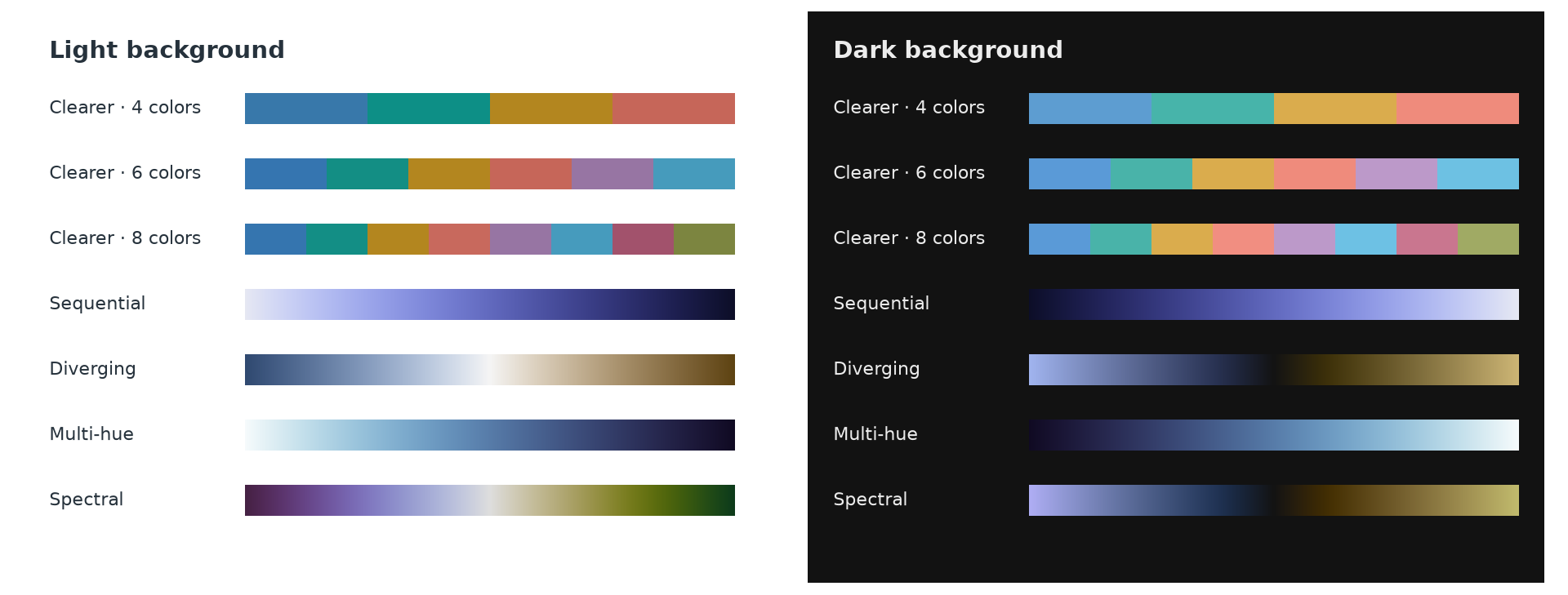

Clearer is the default categorical palette. Use background="dark" for dark figures.

Quick start · Plotting examples · Figure doctor · API guide · Release notes

Recent updates

• 18 named gradients, including six new choices: Cobalt, Copper, Dusk, Orchid, Tundra and Verdant, each with light and dark versions.
• Revised Aerosol, Bathymetry and Thermal to distinguish the reported lookalike routes. Earlier versions remain available through their saved recipes and immutable design IDs.

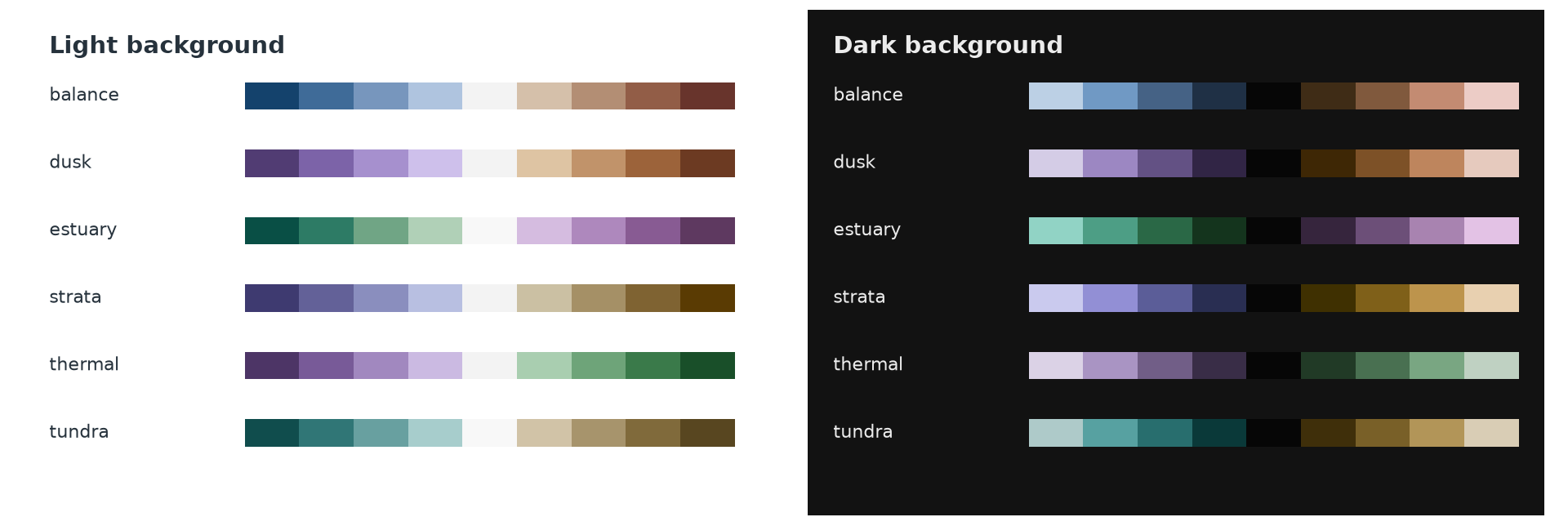

• Nine colors by default with gradient.discrete(). Diverging and Spectral gradients include the exact neutral as the fifth color. Explicit even counts are supported and omit the midpoint.
• Named suffixes: _r reverses, _d selects dark, and _d_r or _r_d combines both.

All eighteen named gradients are supported. Numerical screening results and usage guidance are available in the methods documentation. See the release notes and installation and release guide.

Install

Install Huevat from PyPI with your plotting library:

python -m pip install "huevat[matplotlib]"
python -m pip install "huevat[plotly]"
python -m pip install "huevat[ultraplot]"

Requires Python 3.10+. For colors alone, use python -m pip install huevat.

Make a plot

import numpy as np
import matplotlib.pyplot as plt
import huevat as hv
from huevat.adapters import matplotlib as hmpl

xx, yy = np.meshgrid(np.linspace(-3, 3, 160), np.linspace(-2, 2, 100))
field = (8 * np.exp(-((xx - .7)**2 + (yy - .1)**2))
         - 2 * np.exp(-((xx + 1.1)**2 + (yy + .2)**2) / .4))
gradient = hv.diverging()
nine_colors = gradient.discrete()  # default: 9, including the neutral midpoint
boundaries = [-2, -1.5, -1, -.5, -.1, .1, 1, 2, 4, 8]
palette = hv.categorical(5)

fig, axes = plt.subplots(1, 3, figsize=(12, 3.5), layout="constrained")
continuous = axes[0].imshow(field, cmap=hmpl.colormap(gradient), origin="lower",
                            norm=hmpl.normalizer(-2, 8, center=0))
discrete = axes[1].imshow(field, cmap=hmpl.colormap(nine_colors), origin="lower",
                          norm=hmpl.boundary_normalizer(nine_colors, boundaries))
axes[0].set_title("Continuous · zero at neutral")
axes[1].set_title("9 colors · neutral bin around zero")
fig.colorbar(continuous, ax=axes[0], orientation="horizontal")
fig.colorbar(discrete, ax=axes[1], orientation="horizontal")

axes[2].set_prop_cycle(hmpl.cycle(palette, markers=["o", "s", "^", "D", "v"],
                                 linestyles=["-", "--", ":", "-.", "-"]))
x = np.linspace(0, 1, 25)
for i, label in enumerate(["Blue", "Teal", "Ochre", "Coral", "Purple"]):
    axes[2].plot(x, .12 * i + .08 * np.sin(2 * np.pi * x + i / 2),
                 label=label, markevery=4)
axes[2].set_title("Clearer · specified markers and dashes")
axes[2].legend(fontsize=8, loc="upper right")
plt.show()

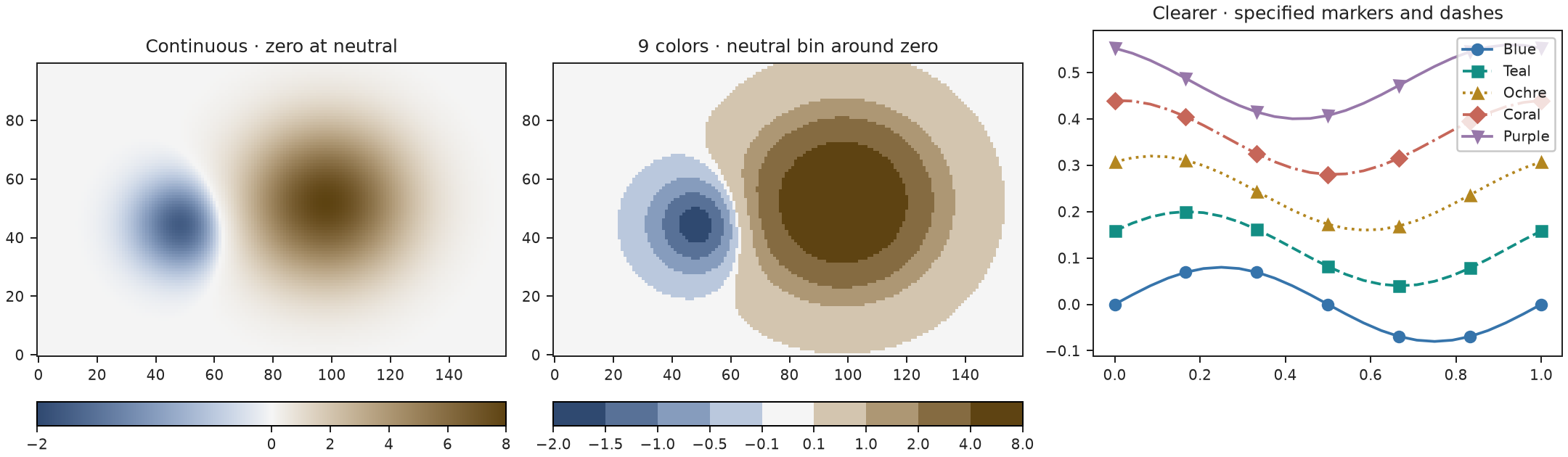

For a field, pass hmpl.colormap(hv.sequential()) to imshow or pcolormesh. Use hv.diverging() with hmpl.normalizer(vmin, vmax, center=0) for signed data. The discrete example uses nine colors, with zero inside the neutral bin from −0.1 to +0.1. Choose bin boundaries to suit your data.

See complete examples for all three plotting libraries.

More gradients

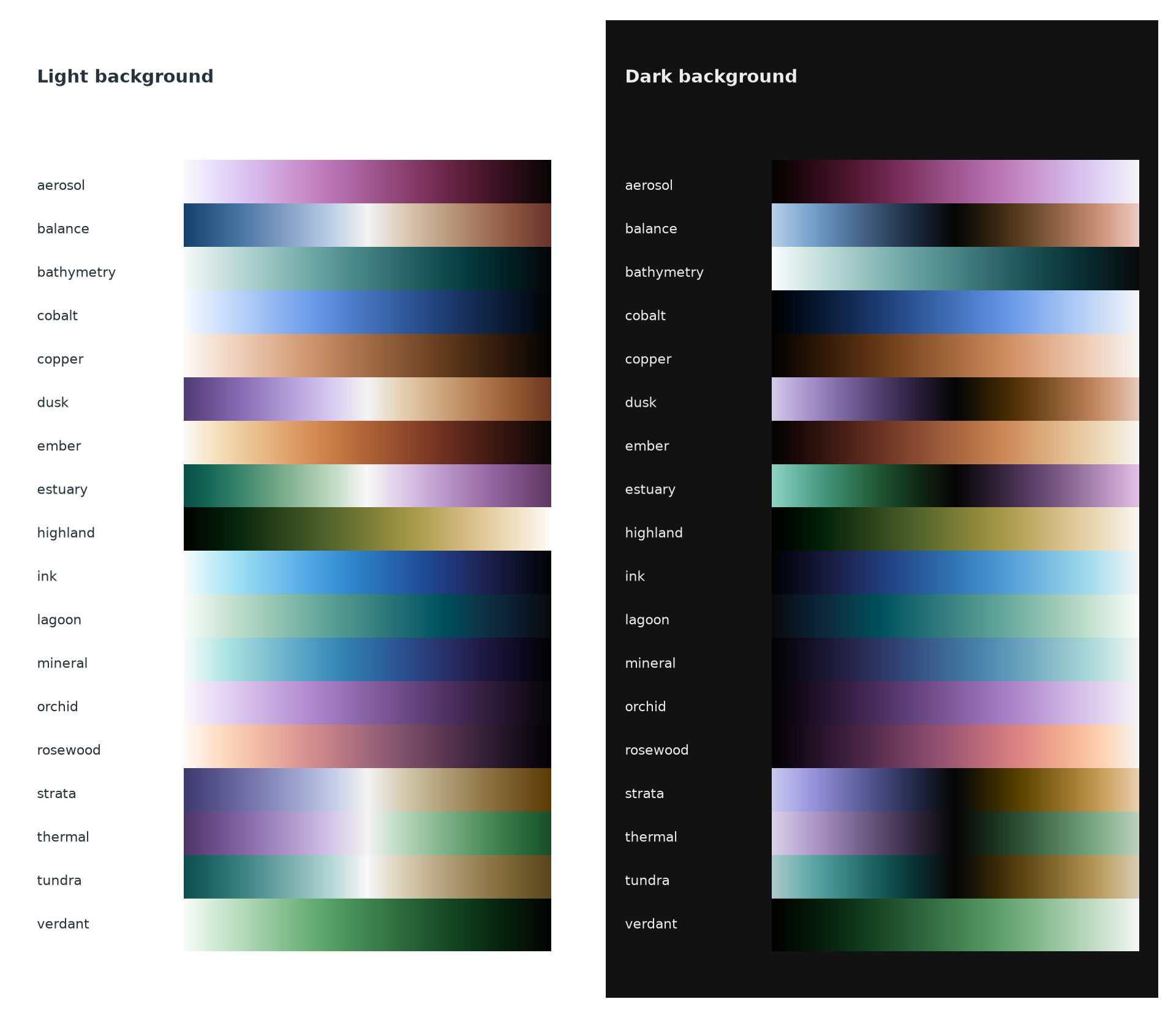

Eighteen additional gradients cover general plots, seismic data, terrain, depth, and atmospheric fields, with supported light and dark variants.

gradient = hv.gradient("bathymetry")
new_gradient = hv.gradient("verdant")
reversed_gradient = hv.gradient("thermal_r")
dark_gradient = hv.gradient("thermal_d")
dark_reversed_gradient = hv.gradient("thermal_d_r")
print(hv.gradient_names())

The revised routes are:

Append _r to reverse a named gradient or _d to select its dark version; combine them as _d_r or _r_d. gradient.reversed() also changes direction. _d is equivalent to background="dark"; combining it with an explicit background="light" is an error.

For separate colors, gradient.discrete() selects nine bins. Diverging scales include their neutral midpoint; explicit even counts remain available.

signed = hv.diverging()
nine_colors = signed.discrete()  # neutral is nine_colors.colors[4]
assert nine_colors.colors[4] == hv.to_hex(signed.at(0.5))

Check hv.known_counts(gradient) for tested counts. hv.optimized_discrete(gradient, n) searches for better-spaced colors and requires the design extra.

Figure doctor

Coordinate colors, markers and dashes in an existing figure. Repeated labels keep the same style across panels.

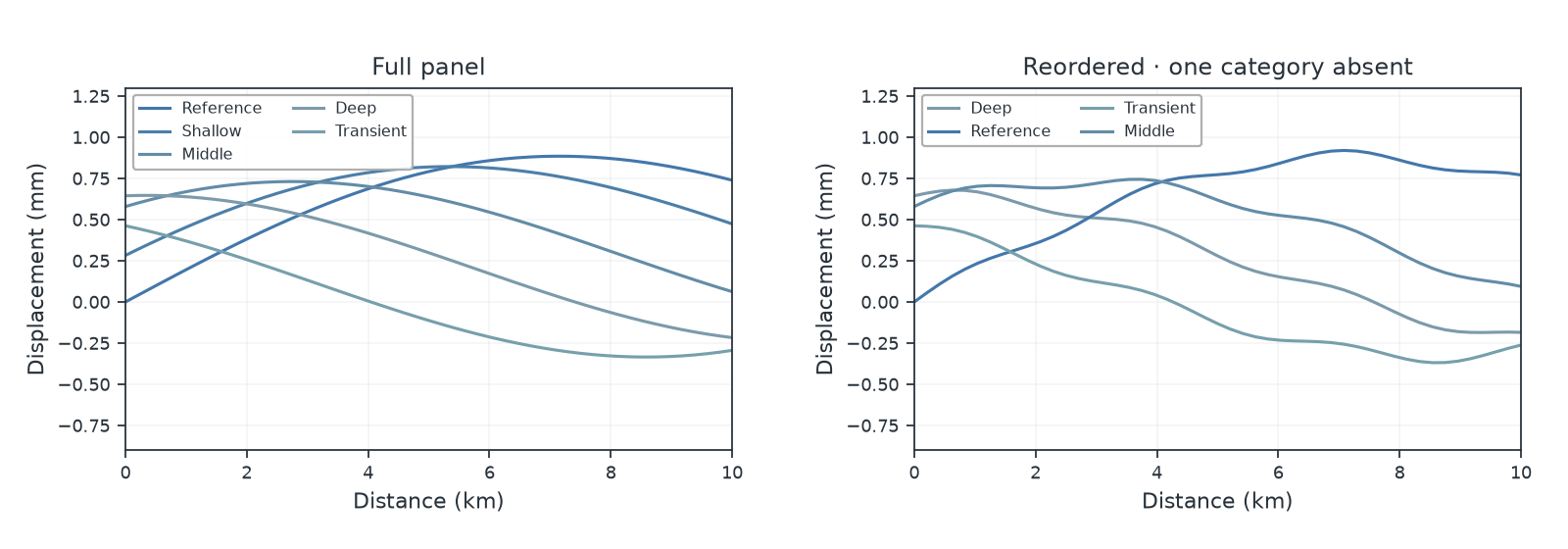

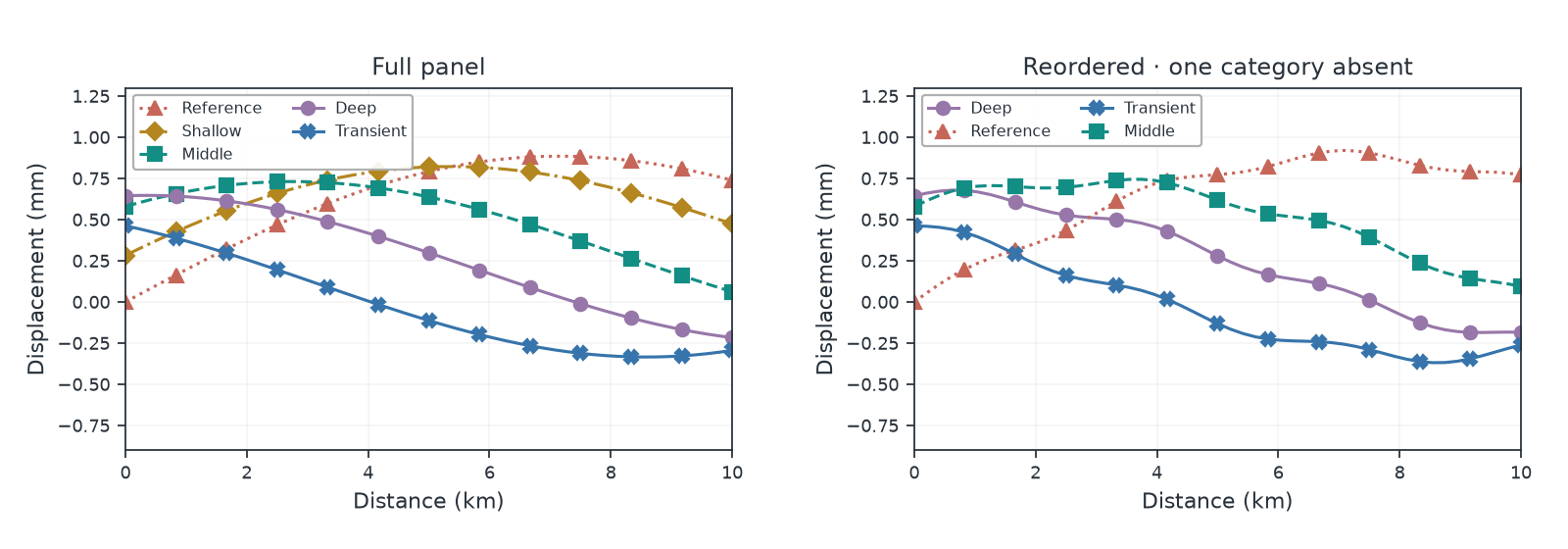

Before	After

Install with python -m pip install "huevat[design,matplotlib]", or replace matplotlib with plotly or ultraplot.

from huevat import doctor

scene = doctor.inspect(fig)
closer, separation, simple = doctor.propose(scene)
preview = doctor.preview(fig, separation)
change = doctor.apply(fig, separation)
change.undo()

Figure doctor guide explains previews, fixed colors and keeping styles across figures. Review the result at the size you intend to use.

Save colors

hv.export(palette).write("palette.json")
restored = hv.load_export(open("palette.json", encoding="utf-8").read()).design
hv.export(hv.diverging(), n=7, format="csv").write("colors.csv")

JSON saves a design for reuse. CSV and hex give you color lists; CSS is also available. See the quick start for labels and more examples.
